PixelTraq is a flexible, traceable camera calibration system engineered for next-generation imaging and vision applications.
Developed for engineers, researchers, and manufacturers who demand accuracy, PixelTraq delivers traceable calibration for single cameras or complex sensor arrays. From machine vision-based metrology applications to advanced optical system performance optimization, PixelTraq provides the foundation for improved data collection to achieve sub-pixel performance for vision systems.
In critical imaging systems, uncertainty about pointing errors and distortion can compromise results.
- Traditional calibration tools and methods can require several manual steps and result in a qualitative rather than quantitative solution.
- With a convergence of technology improvements in detector technology, AI/ML, and machine vision algorithms, traceable camera calibration can unlock the potential of resultant data products.
- Industries at the forefront of advanced technology and data products need calibration processes that scale, adapt, and change what is possible for real-world applications.
Quartus developed PixelTraq to solve these challenges with a single, intelligent, automated platform that evolves as your systems do.
Combining parametric modeling, machine vision, and traceable data collection, PixelTraq provides calibration insights for improved performance.
PixelTraq automates the process of calibrating and characterizing the performance of imaging systems across diverse optical applications. With PixelTraq, you can ensure every camera in your system is calibrated for performance, with traceability built in from the start.
- Complete geometric (intrinsic and extrinsic) parametric calibration for 2D, 3D, stereo, and fused sensor systems
- On-axis and volumetric focus characterization using spatial frequency response (SFR) analysis
- Custom precision calibration targets tailored to field of view (FOV), working distance, area coverage, and extrinsic datums
- Single- and multi-wavelength calibration options for testing chromatic variation and cross-spectral performance
- Scalable architecture supporting configurations from telephoto to ultra-wide field of view
- Compatible with all common and custom camera systems — bring your own camera
- Export calibration data and models in standard or user-defined file formats
- Digital audit logs, calibration certificates, and traceable documentation for quality assurance and compliance
- Open-source C++ library for integration of models into your high performance application
PixelTraq draws on Quartus’ deep heritage in machine vision, optical measurement systems, and precision engineering.
PixelTraq is trusted by innovators across aerospace, autonomous systems, manufacturing, and research. Its traceable extrinsic calibration process, verified through object-space reprojection analysis, provides measurable assurance from prototype through production.
PixelTraq gives teams the confidence to measure, align, and validate imaging system performance with precision.
Achieve sub-pixel accuracy and quantifiable precision imaging performance
Simplify setup and operation with automated, traceable calibration that can be tailored to multiple platforms
Minimize rework with real-time validation
Future-proof your systems with adaptable architecture built for AI and machine learning-based vision systems
Unlock the potential of your image processing with calibration systems designed by machine vision experts for machine vision experts.

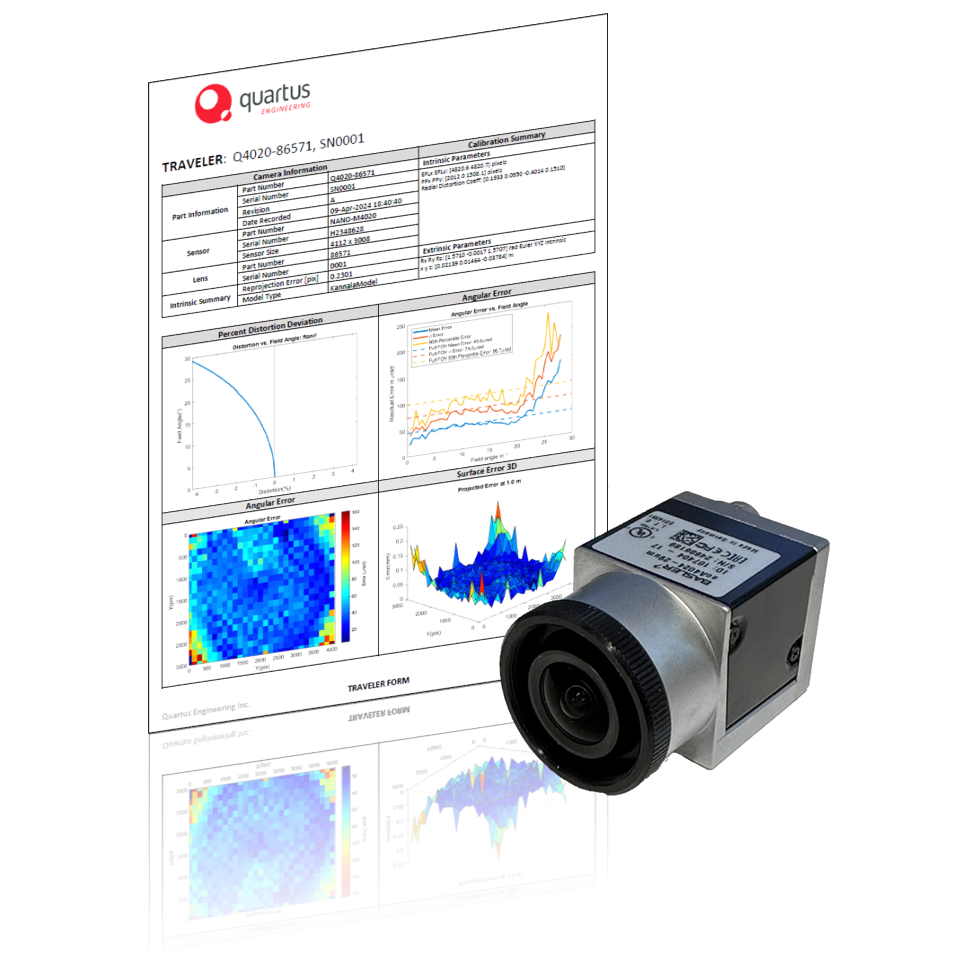

Sample PixelTraq Calibration Certificate
Each camera that completes the PixelTraq calibration is issued a unique Calibration Certificate which summarizes the terms for both intrinsic and extrinsic parametric calibrations as well and residual model-fit errors
